PTFE Conveyor Belt Application in Automotive Glass Screen Printing
一. Application Background

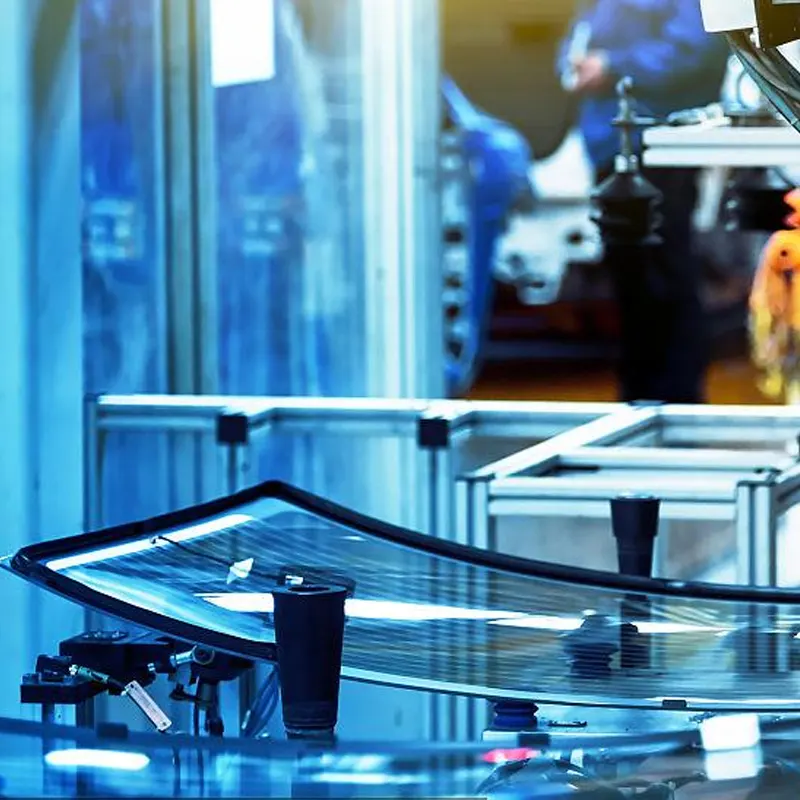

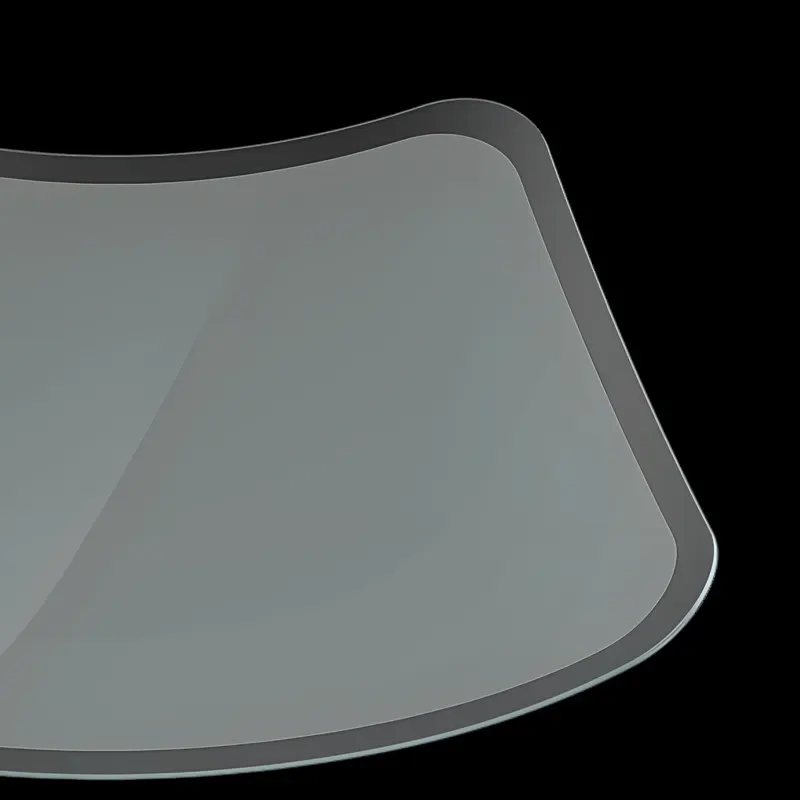

In the automotive glass manufacturing industry, screen printing is a critical process widely used to apply ceramic frit borders, conductive silver paste, shading layers, heating circuits, and brand logos onto windshields, sidelites, and sunroofs.
This printing process typically involves high-temperature drying (infrared, hot air, or UV curing) combined with high-speed conveying, cleanliness control, and precise pattern alignment. Therefore, it demands conveyor belts with exceptional performance.
Our PTFE-coated conveyor belts are engineered to meet these requirements, offering excellent heat resistance, non-stick surface, dimensional stability, and antistatic properties to significantly enhance print quality and production efficiency.
二. Industry Challenges and PTFE Conveyor Belt Solutions
In practical applications, automotive glass printing lines face the following key challenges, which our professional PTFE conveyor belts effectively address:
1. High-Temperature Drying Environment
After printing, glass passes through hot air or infrared drying systems, typically between 180°C and 260°C. Our PTFE-coated fiberglass conveyor belts feature outstanding heat resistance, enabling continuous operation at high temperatures without softening, warping, or structural degradation.
2.Ink Residue Contamination on Glass Surface
Residual ink or ceramic paste can adhere to the conveyor belt, causing secondary contamination. The PTFE surface’s excellent non-stick property effectively prevents material adhesion, keeping the glass surface clean and reducing scrap rates.
3.Static Electricity Interference Causing Print Layer Misalignment
Static buildup during drying, especially when printing conductive materials like silver paste, attracts dust and affects pattern alignment. Our optional antistatic PTFE belts incorporate conductive fibers or carbon layers to dissipate static charges, ensuring print accuracy.
4.Dimensional Instability or Conveying Deviation
Conventional conveyor belts tend to stretch or deform under high tension and temperature. Our belts use high-strength fiberglass substrates with excellent dimensional stability, ensuring precise, smooth glass transport without slippage or misalignment.
5.Frequent Belt Deviation and Joint Issues
Long production lines require precise belt joint and tracking control. We offer closed-loop (seamless or hot-pressed welded) belts with high joint strength and smoothness, combined with guiding systems to prevent belt deviation and slipping.
三. Recommended PTFE Conveyor Belt Types and Applications
To meet different application needs on automotive glass printing lines, we recommend the following professional PTFE conveyor belt types:
1.Closed-Loop PTFE Conveyor Belt
Seamless or hot-pressed welded joints, smooth surface, and high heat resistance. Suitable for high-temperature drying zones after screen printing, such as infrared or hot air ovens, ensuring continuous stable glass transport.
2.PTFE Open Mesh Conveyor Belt
Excellent ventilation and heat dissipation, commonly used in UV curing or rapid cooling sections. Standard mesh sizes include 1×1mm and 4×4mm, balancing strength and airflow for efficient curing.
3. Antistatic PTFE Conveyor Belt
Incorporates conductive materials (e.g., carbon fiber layers) to provide excellent static dissipation. Ideal for printing lines with silver paste or precision patterns and electronic glass, ensuring cleanliness and pattern integrity.
4.Kevlar Reinforced PTFE Conveyor Belt
Kevlar (aramid fiber) reinforcement enhances tensile strength and thermal stability, suitable for heavy-duty or large-format glass panel high-speed conveying systems, including dual-lane or long-line setups.
四. Customer Case Study
A glass manufacturer adopted our customized antistatic closed-loop PTFE conveyor belts on their smart windshield printing line, achieving:
•35% reduction in glass surface ink contamination
•Cleaning frequency decreased from once per shift to once per week
•Significant improvement in print alignment accuracy
•Doubled maintenance intervals and reduced downtime
五. Our Advantages
✅ Wide operating temperature range (continuous resistance up to 260°C)
✅ Non-stick surface suitable for high-cleanliness printing processes
✅ Excellent dimensional stability and tensile strength for long service life
✅ Multiple belt structures available: closed-loop, mesh, antistatic, reinforced
✅ Customizable dimensions, thickness, edge reinforcements, and guide strips
六. Contact Us
We specialize in PTFE conveyor solutions for high-end manufacturing sectors, with extensive experience exporting to Europe and the Americas. Our services include:
•Sample provision and technical datasheets
•Custom selection and OEM/ODM services
•Responsive after-sales support
Feel free to contact us via email or WhatsApp for more application details.
