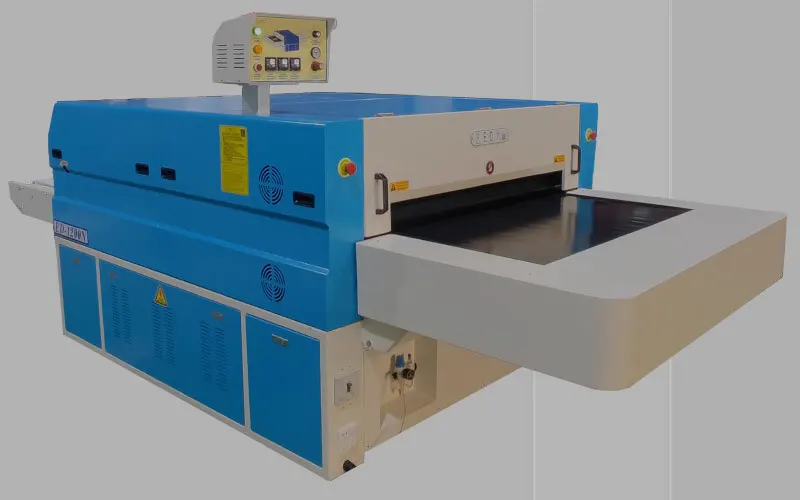

Fusing machine is a kind of large-scale equipment suitable for fabric fusing, with the characteristics of uniform temperature, stable pressure of glue roll, smooth mechanical transmission and low noise. The machine is equipped with a power failure hand crank mechanism to protect the tape, and support temperature, pressure, speed adjustment, easy to operate and simple maintenance. Its scope of application covers a variety of scenarios such as hot stamping, hot stamping, hot stamping, lace shaping, garment bonding interlining and home textile product fabric bonding.
Product Features

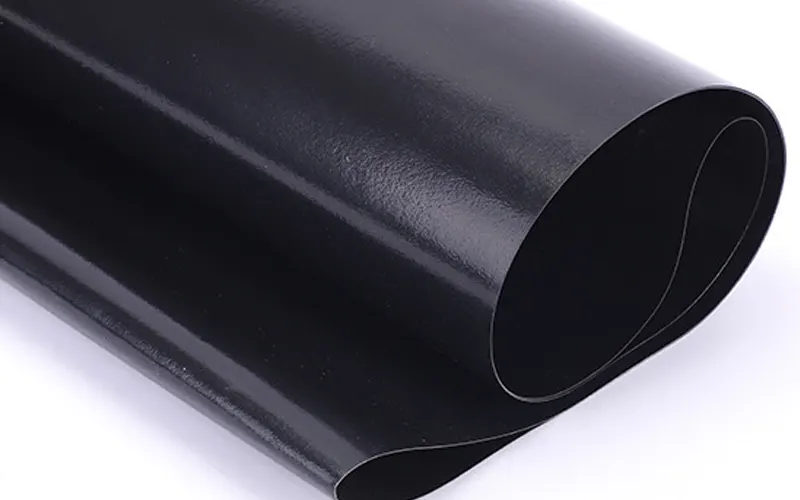

PTFE (Polytetrafluoroethylene) conveyor belts are widely used in garment bonding machines due to their excellent thermal and mechanical properties. Key features include:
•High heat resistance
•Anti-static performance
•Excellent non-stick surface
•Durable and wear-resistant
•Dimensional and operational stability
Types of PTFE Conveyor Belts
1. Seamed Belt (Joint Belt)
Made by overlapping or butt-jointing PTFE-coated fiberglass fabric into a loop. There are two common types of joints: diagonal and straight.
•Drawbacks:
•Thicker joint section
•Higher risk of breakage at the seam
•Shorter service life
2. Seamless Belt
Woven from high-strength fiberglass yarn or aramid fiber using circular looms, and then coated with PTFE resin.
•Advantages:
•Uniform circumference
•No tracking issues
•Long service life
• Thickness options:
•~0.38mm (2-ply yarn): smoother surface
•~0.45mm (3-ply yarn): higher tensile strength
•Not recommended for high-precision garment machines
3. Composite Belt
Made by laminating two layers of PTFE fabric in an offset pattern.
•Advantages:
•Smooth and delicate surface
•Uniform thickness
•Excellent anti-deviation performance
•High strength and long durability
•Ideal for ultra-thin interlining bonding
•Also used in:
•Sealing machines
•Tabbing/string welding machines
•Packaging and photovoltaic industries
Available Colors
•Black
•White
•Coffee / Brown
Anti-static Options
•Anti-static PTFE belts
•Non anti-static belts
Size Specifications (Seamless Belts)
•Width: ≤ 1800 mm
•Length: 1300 mm – 6700 mm
Optional Processing / Customization
•Edge reinforcement / Edge wrapping
•Side guides / guide strips
•Seam stitching
•Metal buckles / eyelets / rivet joints
Common Applications in the Garment Industry
•Bonding machines for interlinings
•Seam sealing and hot melt lamination
•Pressing machines for functional fabrics
•Heat transfer and ironing systems
| Item NO. | 2-yarns | 3-yarns |
| Color颜色 | white/black/brown | white/black/brown |
| 厚度 Thickness (mm)±5% | 0.38±0.02 | 0.45±0.02 |
| 成品克重 Total Weight (g/m²)±5% | 650 | 780 |
| 抗拉强度 (N/5cm)≥Warp | 2800 | 3200 |
| 抗拉强度 (N/5cm)≥Weft | 2600 | 2800 |
| 撕裂强度 (N/5cm)≥Warp | 60 | 60 |
| 撕裂强度 (N/5cm)≥Warp | 60 | 60 |
| The technical data presented is based on our current knowledge and experience and is provided for reference purposes only. We make no guarantees regarding its accuracy under conditions beyond our control. Specifications are subject to change without notice. | ||
